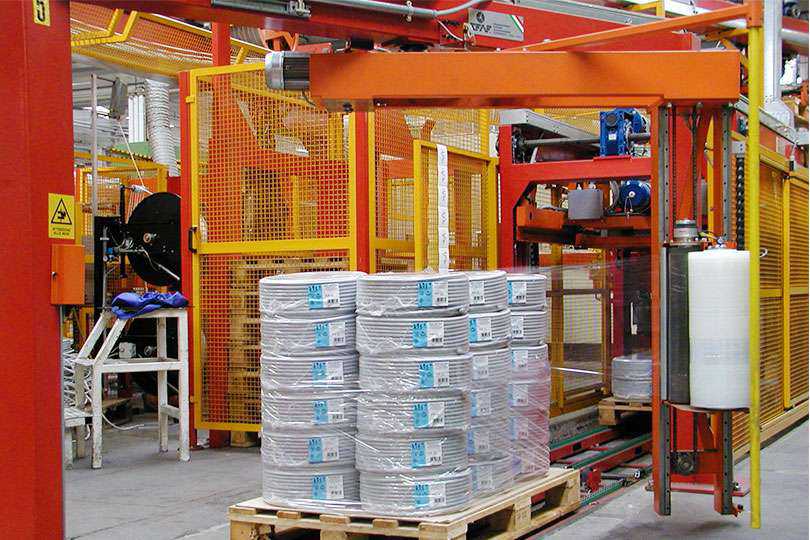

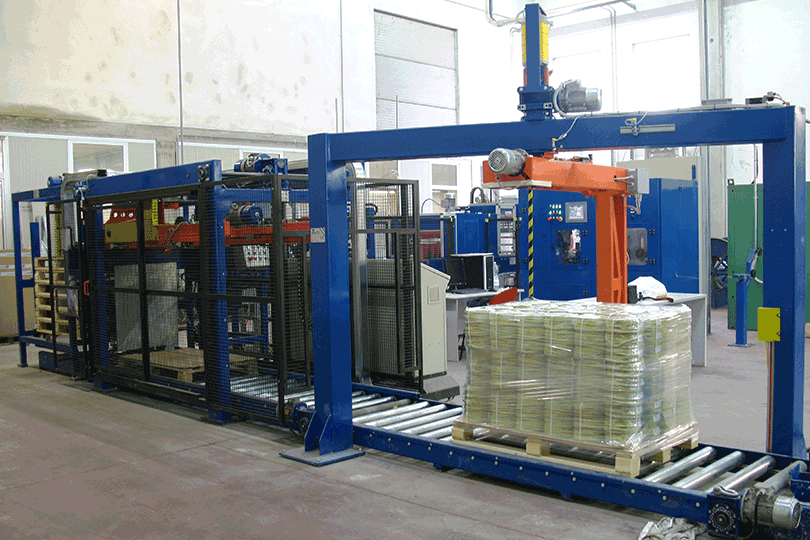

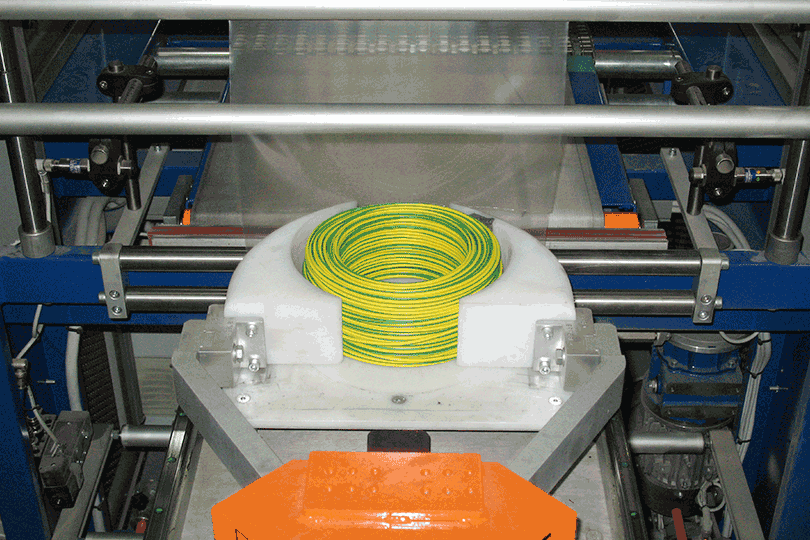

This packaging system is used for full seal thermal shrink packaging and palletizing , and wrapping PE film after coilers on the pallet with automatic operation.
Technical Specification :
Machine Type
EFAF260
EFAF400
EFAF600
Cable Cross Section (mm²)
0.75-6.0
4.0-16
10-95
Cable Diameter (mm)
2.0-5.0
4.0-8.0
6.0-16
Coiler OD (mm)
160-250
220-400
320-600
Coiler ID (mm)
120/150
150/200
150/200/300
Coiler Height (mm)
35-115
35-200
60-250
Coiler Length (m)
100
100
100
Min.coiling cycle (s)
12
18
24
Max.Productivity (100m，coils/min)
5
3
2.5

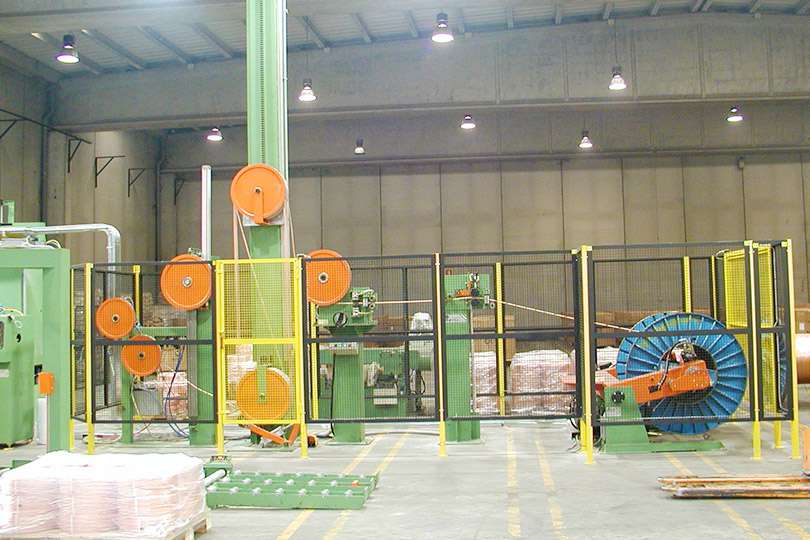

Consist of: flyer pay-off, sparker tester, automatic coiling machine, thermal shrink packaging machine, tapping machine, automatic palletizing machine and wrapping machine system.
Higher reliable, Higher efficiency, Higher environmental, best solution of upgrading on automatic for your machine.
