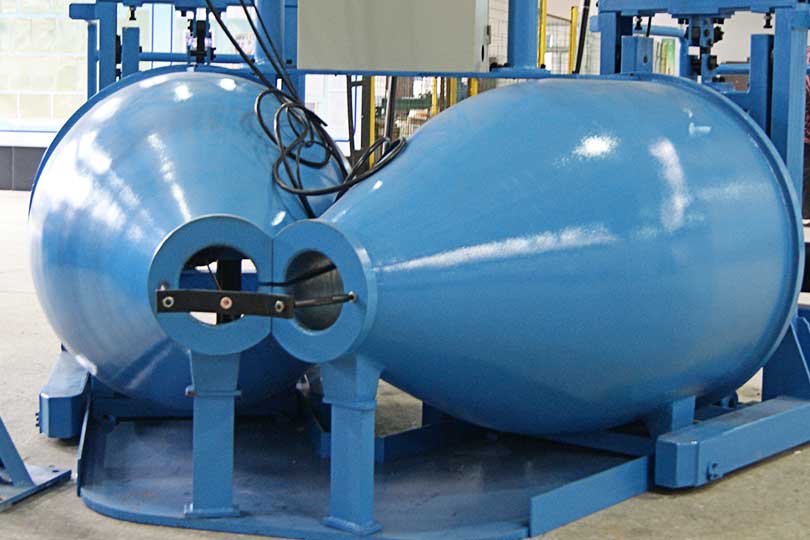

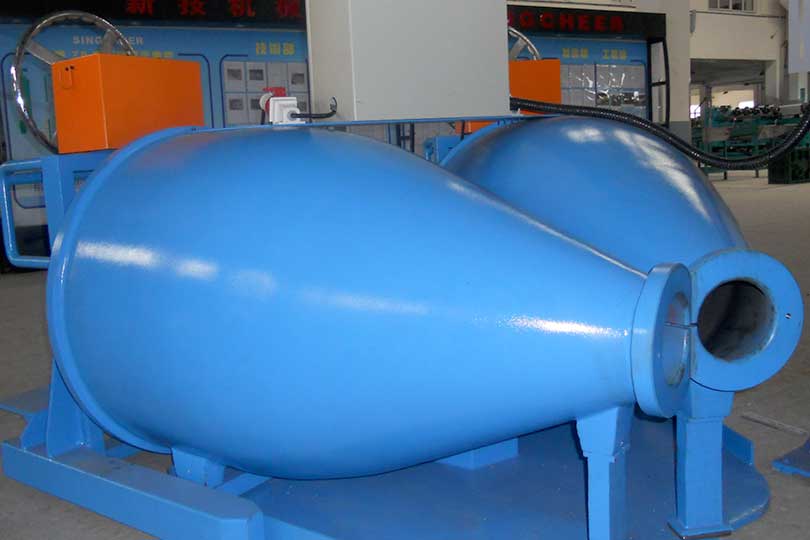

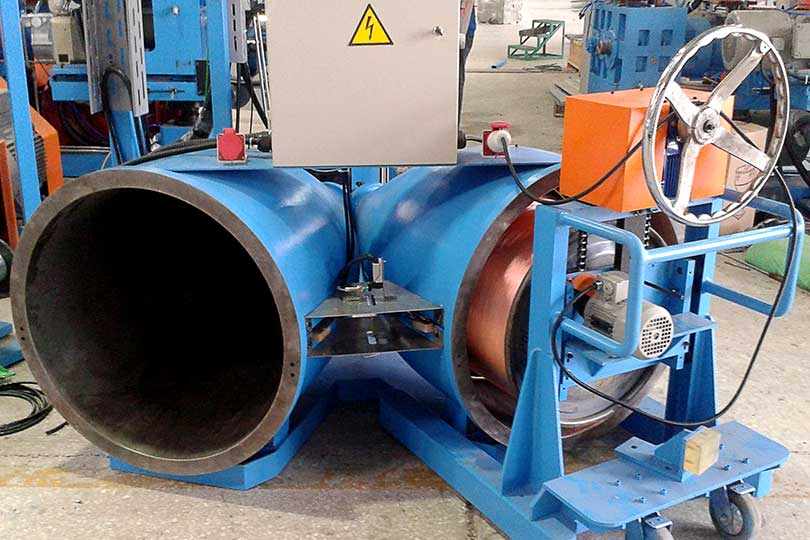

The dual flyer pay-off is designed for continuous production, no noise and paying off smoothly at high speed.
Technical Specification :
Composed by two cast iron (stainless steel), parabolic shape cone. The inner surface of the cone with polishing process and with a longitudinal groove, make the conductor transfer from one cone to the another, accomplish continuous spool change and ensure continuous production.
Main parameter:
|
Model |
Spool flange dia. |
Weight (kg) |
Wire Dia. (mm) |
Speed (m/min) |
Cone Material |
|
510FXT630 |
500-630 |
500 |
0.6-5.0 |
1500 |
Cast iron/Stainless steel |
|
510FXT800 |
630-800 |
800 |
0.6-5.0 |
1500 |
Cast iron/Stainless steel |
|
510FXT1250 |
800-1250 |
2500 |
3.0-10 |
1000 |
Stainless steel |
